Used MAKA KPF335RT of 2000 for sale

2000 | Ref.: 300048445

CNC machining centers MAKA, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used MAKA KPF335RT

Ref.: 300048445

Year: 2000

Brand: MAKA

Status:
For sale
Ask for machine price Want to sell your machine?

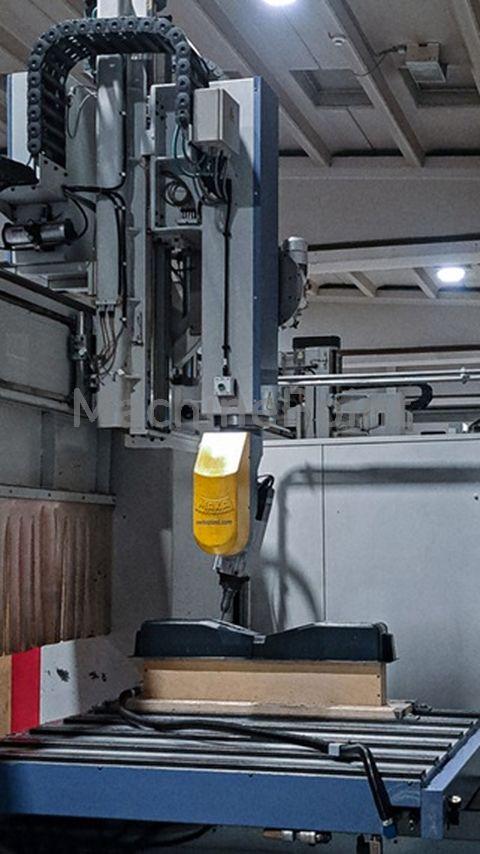

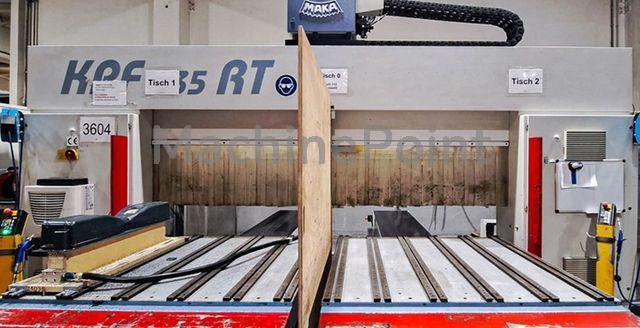

MAKA - KPF335RT - Used machine
MAKA - KPF335RT - Used machine
MAKA - KPF335RT - Used machine
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Number Of Axes: 4
  • Work Area (Lxwxh): 1.5x5x0.65

Other Specifications:

Spindle type 130 lg
Table width: 1.5 x 1.5m
Spindle changer
Magazine with 20 spaces
New spindle worth EUR 14,000

Milling unit
HSD high-speed milling spindle
Air-cooled
Power 6.8 kw
Speed range 24. 000 min*1
Permanent grease lubrication
Tool holder ISO 30 + special clamping bolt

Spindle changer
- Fixed X-zero arrangement
- 4 positions for angle heads and special tools
Movable, 10 positions max. D 60mm, at 130 gl.
Rotational speed range 24 000 min*1
Permanent grease lubrication
Tool holder ISO 30 + special clamping bolt

Surface table in tandem version, each with separate clamping circle
(2x) X-axis max. 1500 mm
Y-axis max. 1500 m
Z-axis (with clamping height 120 mm and Tool-130 lg. )

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
