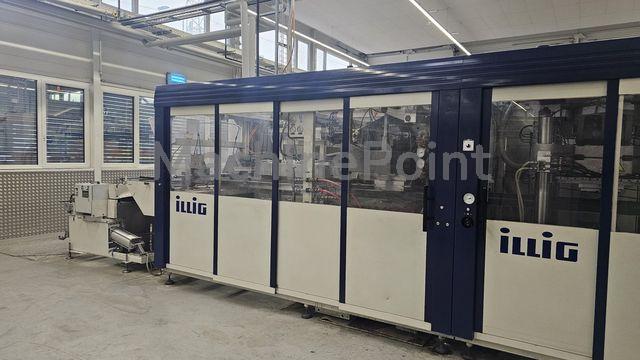

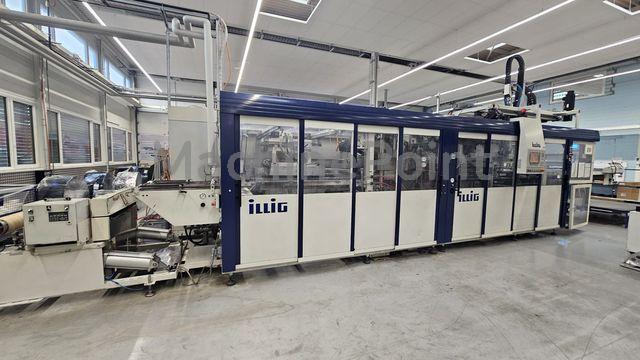

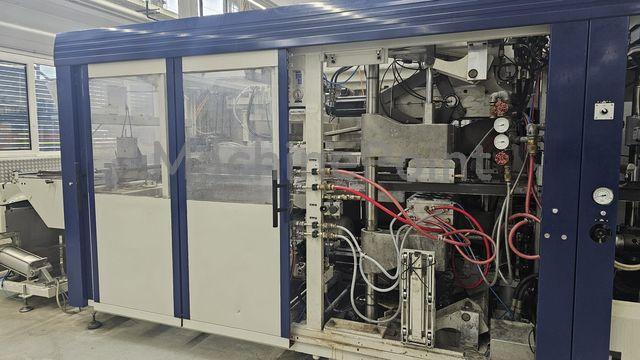

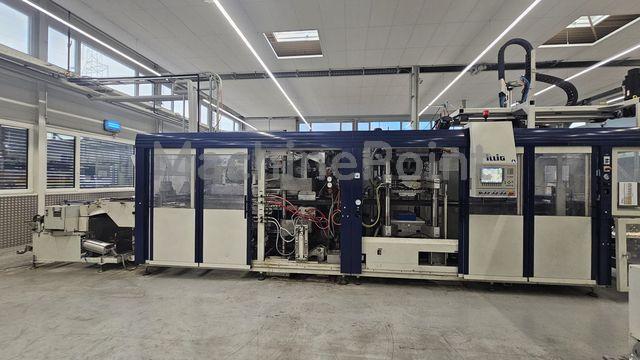

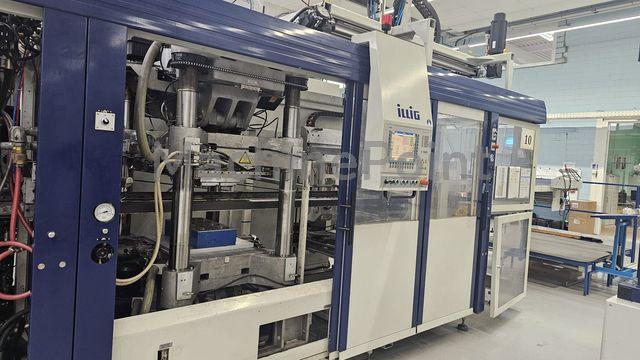

Used ILLIG RDKP72G of 2008 for sale

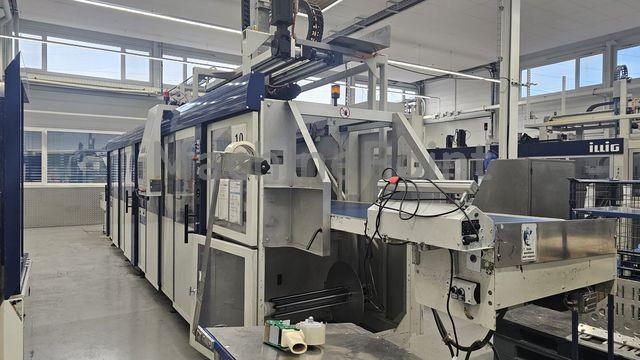

Forming area min. 300x100 mm Forming height above/below sheet : 100/30 mm Sheet width: max./min. 550/340 mm Max. number of cycles: 18/minute depending on materials Pneumatic system Plug assist Vertical adjustment of the lower part of the forming table Stacking unit with unloading

Thermoformer : Forming area min-max : 100x300 - 350x500mm Height of forming above working level max : 100mm Height of forming below working level max : 30mm Width of material min-max : 340-540mm Connected load of upper heating : 9.8 kW Length of upper heating : 875mm Connected load of lower heating : 5.6 kW Length of lower heating : 500mm Stroke of lower frame : 45mm Diameter of material roll : 600mm Cutting : Max. cutting area : 350x 500 mm Cutting pressure : 250 kN Min./max. height of cutting line : 80/110 mm Connected load of heater for steel rule die : 4kW Complete machine (Thermoformer and cutting) Number of cycles max. : 20 Total connected load with upper heating : 13.7kW Total connected load with upper and lower heating : 19.3kW Total connected load with upper and lower heating and heating of steel rule die : 23.3 kW Total air consumption/cycle with max. stroke length : 45 NL Operating pressure min. : 6 bar Recommended actual capacity of compressor : 1,200 NL/min. Roll diameter of skeletal web max. : 600 mm Working level above floor : 1,100mm Total width incl. control cabinet : 1,930mm Total length incl. material roll stand : 6,330 mm Total height : 2,050 mm Weight of machine 3000 kg This machine has a Motoman robot installed that was used to collect the parts produced and stack them on a conveyor belt. This was important due to the size of the parts that has been produced (too small) The machine has 193.111 working hours but had a big inspection and a lot of critical parts replaced by Illig in 2022.
