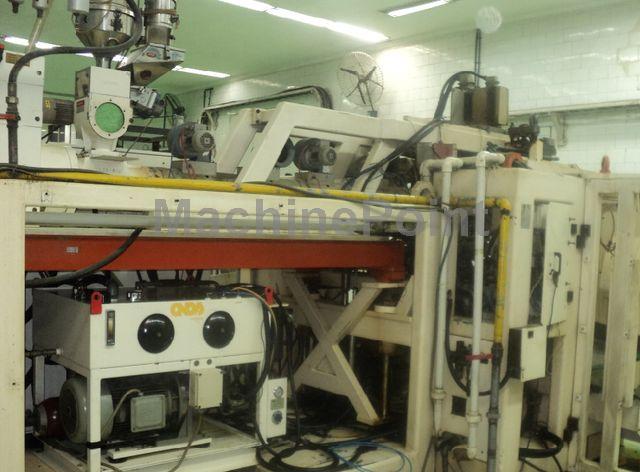

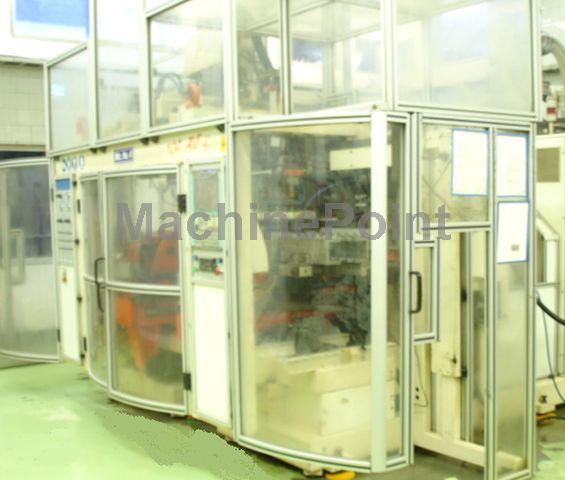

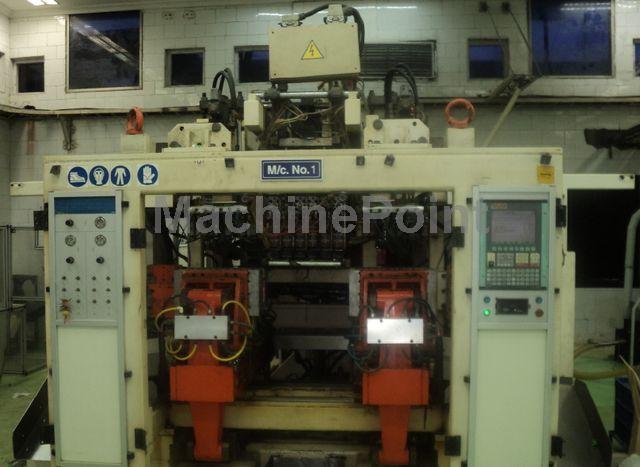

Used JOMAR EBM 6-D of 2003 for sale

Extrusion Blow Moulding machines up to 10L JOMAR, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

We remain fully operational during the coronavirus outbreak.


Data Sheet of Used JOMAR EBM 6-D

Ref. : 300034633

Year: 2003

Brand: JOMAR

Status: For sale

Delivery time: Immediate



Technical Specifications:

Container Size With Actual Configuration: 0.5 l

Number Of Heads: 6

Material Type:PE PP

Container Size (Max): 6 l

Number Of Stations: 2

Extruder Type:Continuous

Number Of Extruders: 1

Screw Diameter: 90 mm

L/D: 25

Center Distance: 75 mm

Other Specifications:

EBM Blow Star - Jomar 6 +6 75 mm CD W. Muller head

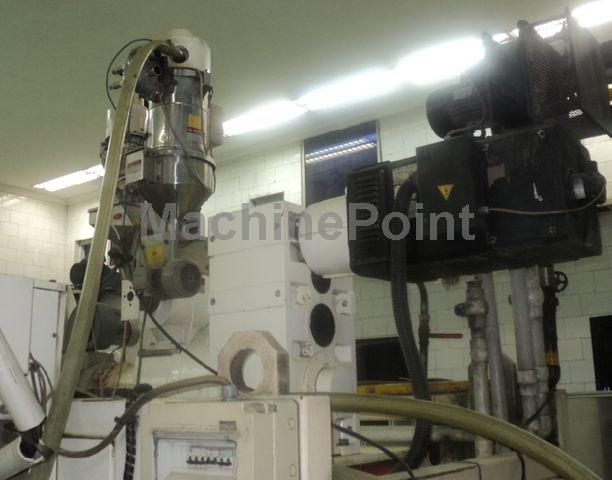

EXTRUDER

diameter 90 mm
Screw length L/D 25
Heating capacity Kw 21.5
Barrel zone N 4
DC motor drive Kw 70

HDPE Kg/h ~220
PP Kg/h ~190

MOLD PLATEN DIMENSIONS

Width 675 mm
Mold thickness min 145 mm
Height 475 mm
Opening stroke 260 mm
Carriage stroke 685 mm

HYDRAULIC UNIT
Dry cycle sec. 2.0
Clamping force KN 165
Oil Tank capacity lt. 150
Operating pressure bar. 165
Drive Kw 18,5

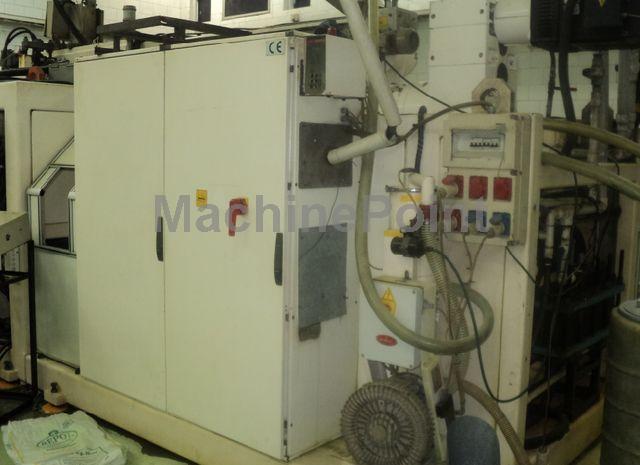

ELECTRICAL POWER
Total Kw 105 + head
Average consumption* Kw/h 70

ENERGY CONSUMPTION
Air pressure bar 8
Air consumption lt/min 1,800
Hydraulic cooling KJ/h 35,000
Blow mold cooling for 5-6°C at Δt 3°C,
pressure 4 bar (kgs/cm2)
HDPE 630 KJ/kg h
PP 680 KJ/kg h

Machine in Excellent Condition with working hrs - 26000

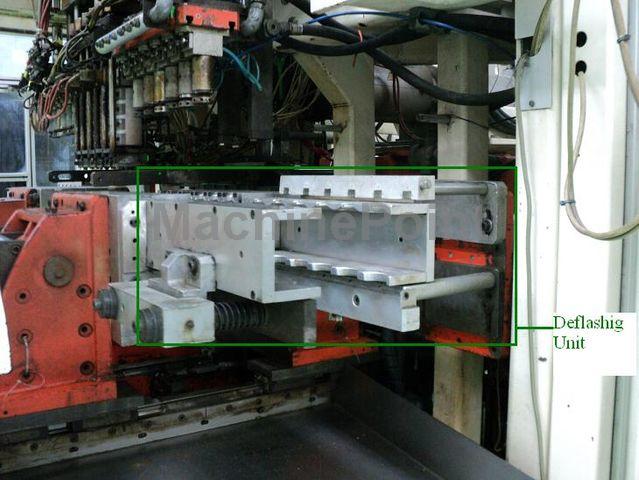

Deflashing unit

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate
