Data Sheet of Used ROCHELEAU R4
Ref.: 300037103
Brand: ROCHELEAU
Year: 2007
- Container Size With Actual Configuration: 1 l
- Number Of Heads: 3
- Material Type: PE
- Number Of Stations: 1
- Output Capacity U/H Or Kg/H: Kg/h 30
- Extruder Type: Continuous
- Number Of Extruders: 1
- Screw Diameter: 38 mm
- L/D: 24
- Center Distance: 85 mm
Other Specifications:

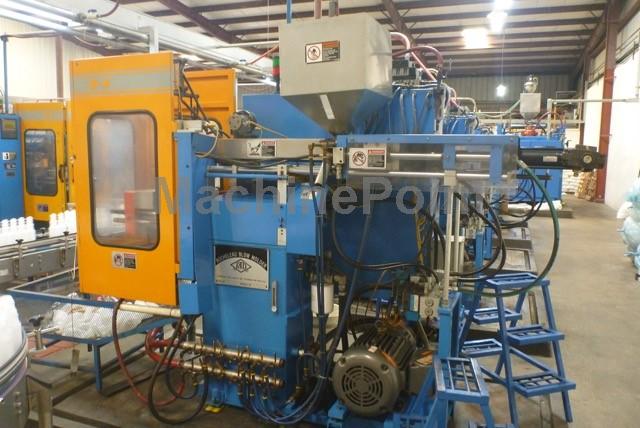

Rocheleau R4 Reciprocating Extrusion Blow Molder
3-head, single station
Reciprocating extruder
Bi-metallic barrel
• Hydraulic motor screw drive,
variable (0-175 RPM)
• 70 lbs/hr (32 kg) HDPE output
• 200 grams maximum shot size, HDPE
25 HP motor power (19 kW)
9,3 kW heaters
Two-zone extruder temperature controls, fan cooling
• Individual die head temperature controls
Clamp Mechanism
• 5 tons force
• 2.5” bore x 10” stroke
hydraulic cylinder
• 6” minimum platen opening,
20” maximum platen opening
• 10” x 10” (L x W) usable
platen area
• T-square arrangement for
rapid mold installation
