Technical Specifications:
Container Size With Actual Configuration: 3 l
Number Of Heads: 2
Material Type:PE
Number Of Stations: 2
Extruder Type:Continuous
Number Of Extruders: 1
Screw Diameter: 100 mm
L/D: 25
Wall Thickness Control: MOOG
Center Distance: 300 mm
Other Specifications:

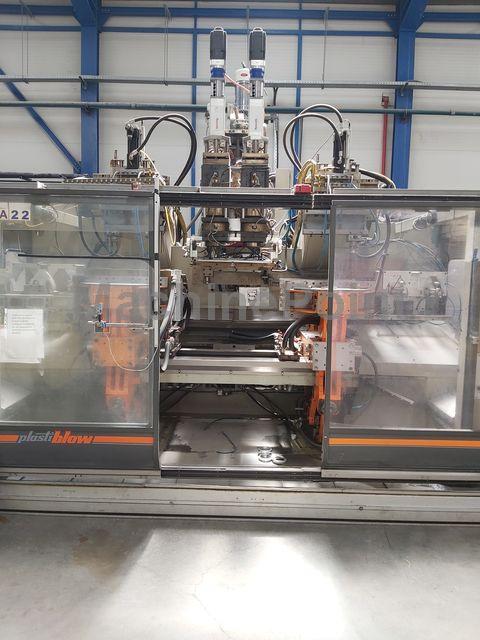

Extrusion Blow Molding machine Plastiblow PB10-D XXL - Hybrid machine
Year 2007

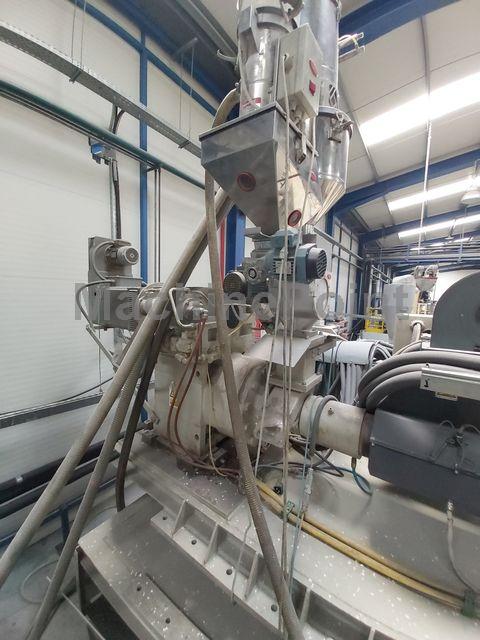

Extruder 100/25:
Screw diameter: 100 mm
L / D: 25
Motor power: 72 kW
Heating power: 20.4 kW
Heating zones: 5
Cooling Fans: 5
Screw plasticizing capacity with PE: 220 kg / h
Blowing unit:
Maximum volume hollow body: 10,000 cc
Maximum blow pin pressure: 18 kN
Maximum mold clamping force: 220 kN
Station stroke: 800 mm
Dry cycle time: 2.8 s
Maximum dimensions of the mold:
Height: 470 mm
Depth: 790 mm
Width: 2 x 135 mm
Opening stroke: 270 mm
Weight: 250 kg
Compressed air:
Average consumption: 4500 Nl / min
Pressure: 6-7 bar
Power Consumption:
Total installed power: 150 kW
Supply voltage (± 10%): 400 V
Current : 285 A
Frequency (± 1%) Hz 50

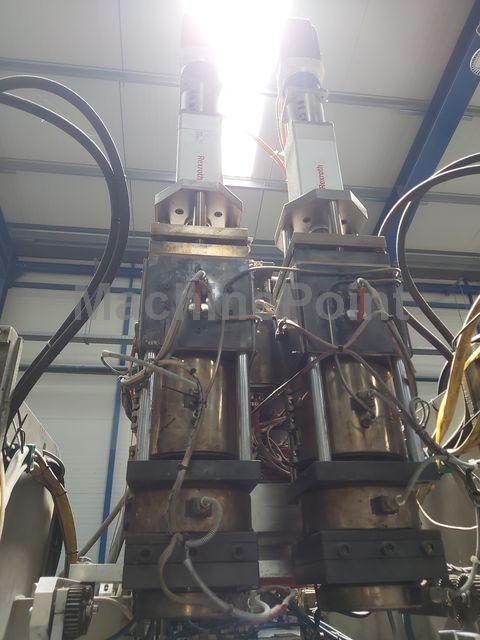

6x head with 110 mm CD included

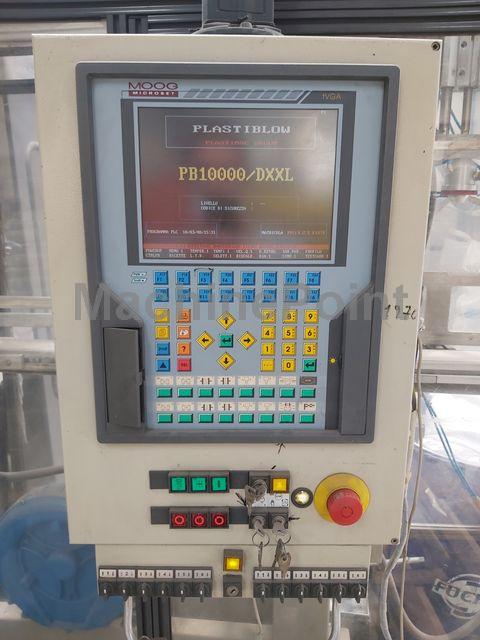

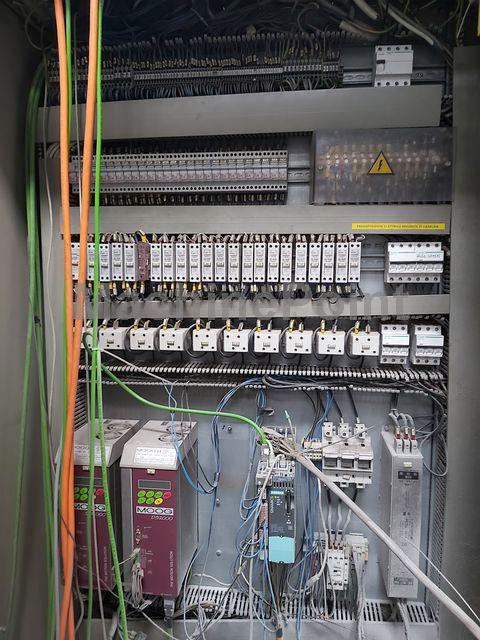

PLC and touch screen need refurbishment
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
