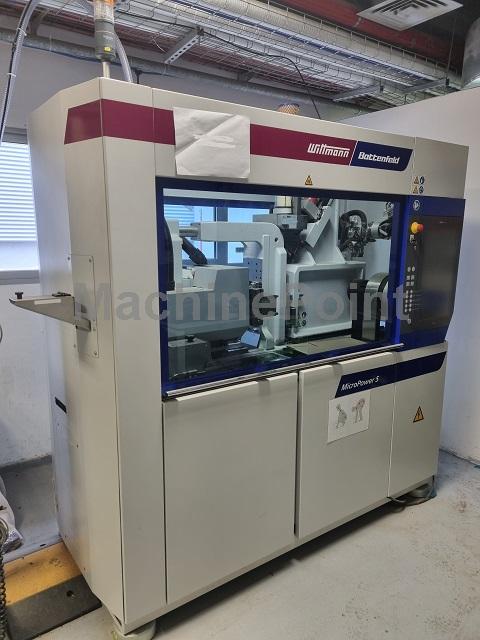

Used WITTMANN BATTENFELD Micro Power 5 of 2019 for sale

Injection molding machine up to 250 T WITTMANN BATTENFELD, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.


Data Sheet of Used WITTMANN BATTENFELD Micro Power 5

Ref. : 300043743

Year: 2019

Brand: WITTMANN BATTENFELD

Status: For sale

Delivery time: Immediate



Technical Specifications:

Clamping Force: 5 ton

Shot Weight (Max): 1 g

Platen Size (H): 240 mm

Platen Size (V): 400 mm

Screw Diameter: 14 mm

Mould Height (Min): 100 mm

Daylight Between Platens (Max): 320 mm

Opening Stroke (Max): 100 mm

Core Pulls:Yes

Number Of Core Pulls: 2

Screw L/D Ratio: 20

Injection Volume: 1.2 cm³

Injection Pressure: 3000 bar

Plasticising Capacity: 1 g/s

Heating Capacity: 1.38 kW

Orientation:Horizontal

Other Specifications:

Almost no working hours.
Dryer and Robot included, info below.
INTERFACE: Euromap 63

-2x Pneumatic core pull for clamping platen incl. Pneumatic regulator

-Additional pressure controller 0 to 10 bar

-Pneumatic maintenance unit incl. pressure regulation

-Nickel plated platen in lieu of standard

-Rotary unit

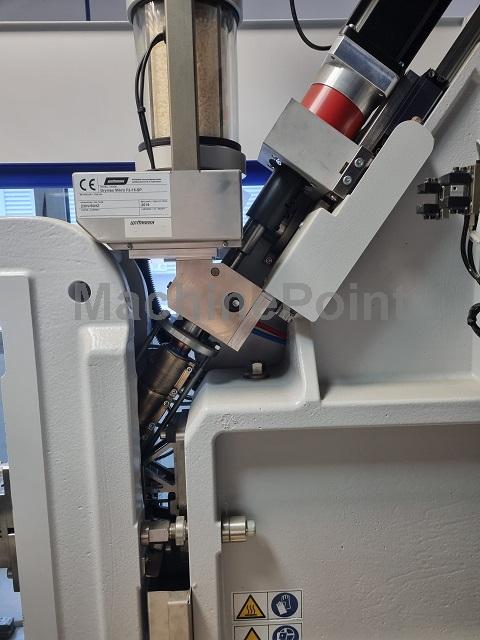

-Complete injection unit in AK+ in lieu of standard

-CAN-Bus interface for Wittmann Dryer integrated (incl. power supply)

-Interface fully integration of robot

-Interface for plant data collection system per Euromap 63 standard network connection via RJ45 Ethernet connector


-Temperature control zone for mould heating - 1,38 kW / 6 A

- Mounted on nozzle platen, operator side


-Levelling pads


-Visualisation for camera control
The camera images are shown online in the Wittmann Battenfeld UNILOG B8 controller.
VGA connection for an external display

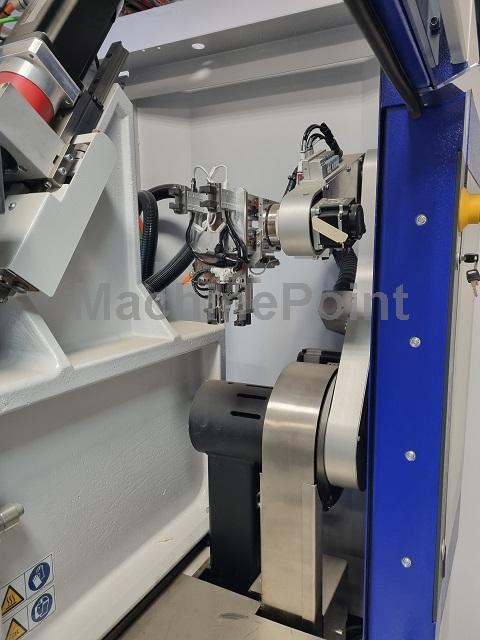

WITTMANN ROBOT W8VS2 INCLUDED.
-placing of parts: non.operator side
X1-axis: 480 mm SS3
X2-axis: 290 mm SS3
C-axis: Servo adapter: standard

-Robot control: Wittmann CNC 8-control integration in Micro Power
emergency stop block
Wittmann R8 Touch-screen hand pendant

-Interface ROB: interface to Battenfeld IMM; incl. 1 pc vacuum circuit (venturi) with vacuum monitoring
incl. 1 pc valve 5/2 monostable


Additional equipment:

-3x additional valve
-2x additional vacuum circuit (venturi)
Danger boundary zone- production with lowered or open machine safety door


Automation:

consisting of:
1 pce. gripper for 2 cavities
1 pce. Insertpart-preparation
1 pce. Transferstation


Gripper for 2 cavities
Description: The insert parts will be gripped mechanically. .


Insertpart-preparation
Description: Bowl and linear feeder (for separating the bulk material) The vibration bowl feeder is mounted beside (left) the IMM. The insert parts will be transferred via a linear feeder into the IMM. At the End of the linear feeder, the parts will be separated and orientated by the turnover module.


Transferstation
Description: 2 pieces cavity plates on 2 separate linear Axis (2 pcs. shuttle) transfer module between shuttle and EOAT (for repositioning and centering the insert parts) After the separation the parts are getting in the cavity plates. The shuttle drives into the transfer module. The Transfer module pushes the parts into the EOAT.


-WITTMANN-MOLD TEMPERATURE CONTROLLER:
TEMPRO-PLUS-D-MICRO-2-100
Operating voltage: 3x380V-415V 50Hz
Connection power: 10A/3kW
Heating capacity/circuit: 0,8-1kW at 380-415V
Cooling capacity/circuit: Plain tube heat exchanger (made of stainless steel) 16kW at dT=75°C (indirect cooling) Enhanced cooling is selectable via menu
Pump capacity/circuit: enhanced with Magnetic coupling, (made of stainless steel) 0,5kW; max. 27 l/min; max. 4,6bar at 50Hz


DRYMAX MIKRO F2-15-SP
Dryer: for drying of plastic granules with two desiccant beds for constant air quality climate independent dew point microprocessor control with function display and fault indication


-Drying hopper: insulated stainless steel drying hopper reduction tube for adjustable hopper volume
2 one hopper with multiple drying areas glass center section for optical level control removable hopper on slide guiding
incl. hopper lid with flange for filling hopper manual slide gate for easy material discharging complete with cover plate


-compressed air pressure: 5 up to 7 bar
-electrical power supply: 230V/1Ph.;N;50/60 Hz

The injection molding machine is equipped with servo-electric respectively frequency converter controlled drive systems and produces higher leakage current through the connected protective conductor PE!

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate

Voltage: 230 V
, Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 1.5 Kw
Full Electric
