Data Sheet of Used FONG KEE IRON WORKS FK/LAFM100-1400

Ref.: 300043980

Brand: FONG KEE IRON WORKS

Year: 2005


    Other Specifications:


    1300 mm Net web width with sandwich Lamination

    Materials: Paper, Al-foil, BOPP/CPP, Polyester. Coating materials PP, LDPE, EVA & EAA, Ionomers.

    1500 mm Die width
    100 mm 32:1 Extruder

    Primary Unwinder
    1.4 m width 850 mm diameter auto splice Turret Unwind, 20~200 N web tension auto tension control by load-cells & particle brake.
    Air Shafts, Web guide.
    1400 mm roll width Anchor Coater with 5 HP AC drive, auto Tension Control, air blower & exhaust blower.
    2 Static eliminators.
    12-60 micron thickness x 1400 coating width.

    Seconday Unwinder (Sandwich)
    500 mm diameter Sandwich roll Turret Unwind, manual splicing, auto tension control by load-cell & particle brake.

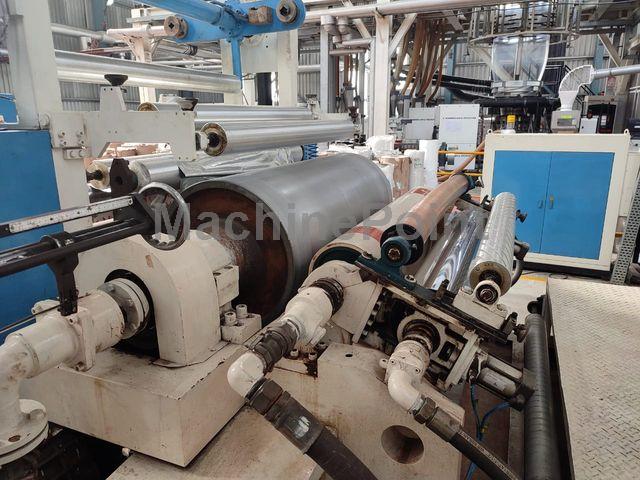

    Double-wall Chill roll with Silicon rubber Pressure roll loaded by pneum. cylinders, 10 HP AC drive.
    1400 mm width x 600 mm diameter.
    Edge-trim Slitting unit with turbo-blower.
    75 kW AC motor, 13 kW ceramic heaters, Melt Pressure Transducer. Auto Hopper Loader.

    Rewinder
    1.4m width 850 mm dia auto splice Turret Rewind with 5 HP AC drive, 40~250 N auto tension control by dancer rolls. Air shafts.
    Up to 280 kg/hr. 180 m/min.

    Mainly electronic spare parts. Lamination for flexible packaging for many applications.
