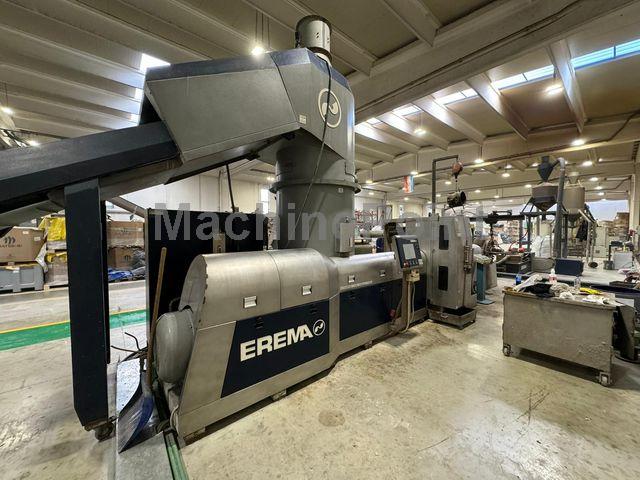

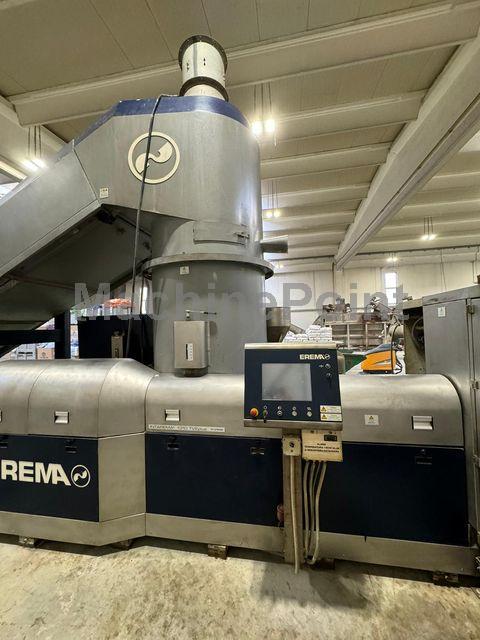

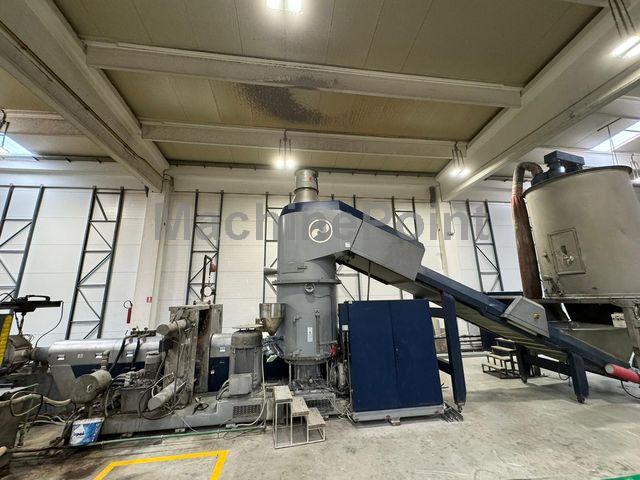

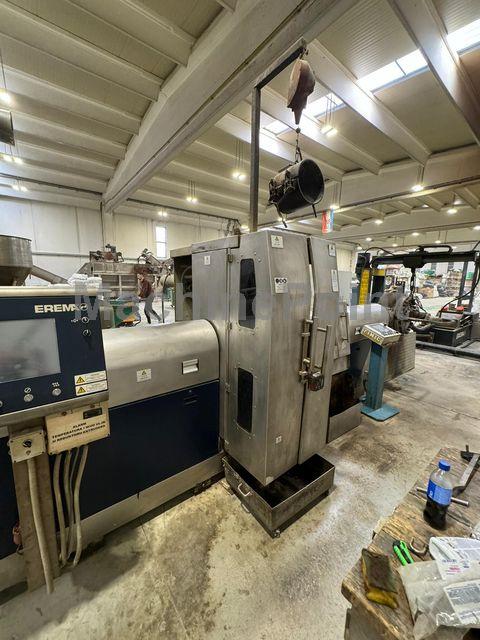

Used EREMA Intarema 1310 TVEplus of 2015 for sale

Consisting of: RM combination RM-63 with cutter compactor Reel Feeder RZ 60/80 Hot Die Face cutting system HG 82 Pellets Dewatering screen GS1500 Fan dryer GGT 75 Granulate conveyor unit FRL10

Material : pet flakes, sheet and PET preform shredding Complete line with: Big bag discharge system through hoppers to feed directly to the extruder or go through a previous drying process IRD Material drying system. Continuous heating, crystallization and drying of a wide variety of plastics and other bulk materials. Double gate pneumatic slider with vacuum slice in vacuum tight execution and vacuum slice including feeding hopper with automatic feeding control. High-performance vacuum system for cutter compactor for special cleaning effect consisting of: Vacuum pump system including all necessary piping as well as digital vacuum display on the control cabinet for vacuum of 1 O mb approx. 2 liquid cooled condensate tanks in parallel arrangement The pumps included are 3 pumps of the following characteristics: - 1 VH 600 - 18,5 kW water rings - 1 VH 4000 m3/h- 11 kW Root pump - 1VH1200 m3/h- 4 kW Root pump RM Combination RM 160 TE VSV Vacuum cutter compactor/pre-drier combination with vacuum operated cutter densifier and with double vented extruder cylinder Patented design in its execution. Extruder power - frequency controlled: 200 KW AC Screw diameter : 160 mm Effective screw length: 5483 mm Screw speed, variable: up to 90 rpm Heating capacity cylinder:68,2 KW Heating zones cylinder: 6 zones Heating capacity adapter: 5 KW Heating zone adapter :1 Bimetal-extruder-cylinder in resistant execution Extruder screw land cladded and nitrided Double-vented cylinder, Supported by high performance vacuum pump Vacuum sealed screw bearing system Extruder-cylinder liquid cooled Shock sensor - vibration meter Automatic 'Stop' of complete plant in case solid foreign matter exceeding a certain size is entrained into the cutter compactor. Sensitivity adjustable. Temperature control valve for liquid cooled extruder-cylinder Melt pressure indicator High-performance vacuum system for extruder consisting of: Vacuum pump system including digital vacuum display on the control cabinet for vacuum of2 mb approx. 2 water-cooled condensate tanks in parallel arrangement, each with separate stop cocks for maintenance ( cleaning) during continuous operation. The vacuum pumps included are two with the following characteristics: - 1 VH 400 - 15 kW - water ring - 1VH1200 m3/h-4 kW - root pump Touch screen control system with PLC Siemens and PC Screen changer SW 8/170 RTF with partial backflush system Screen diameter: 8 x 170 mm Screen surface total :1816 cm2 Heating capacity :47,6 KW Heating zones :10 Admissible melt pressure: max. 400 bar Power - hydraulic unit : 3 KW Extruder die 48/5 -T-form Self-cleaning No. of holes (48) Made of tempering steel, nitrided Heating capacity (6,5 KW) Previero pelletizer and vibrating screen.

LLDPE, LDPE 1300 -1600 kg/h Moisture max [%]: < 6 Thickness [μm]: 10 - 200; MFI [g/10min]: 0,5 - 3 [2,16kg/190°C]; HDPE, MDPE 1000 - 1400 kg/h Moisture max [%]: < 6 Thickness [μm]: 10 - 200; MFI [g/10min]: 0,3 - 3 [2,16kg/190°C]; Belt Conveyor FB_10000_1200_SH Drive: AC motor with gearbox Belt: 10000 x 1200 mm equipped with cleats Double Layer All Metal Detector MT2_1200_DLS144H40 INTAREMA Process Combination I_1716_TVEplus Shock sensor, cutter/compactor energy management, melt pressure indicator, melt temperature indicator and air/water heat exchanger for control cabinet Liquid cooled bimetal extruder-cylinder Cutter/compactor: Ø 1700mm, stainless steel Extruder Screw: Ø 160mm singlescrew 3S-technology Erema Air flush Technology AFL_1300_1700 Powered Exhaust System SAS_2500 Infeed flange at cutter compactor FEED_SV_FLANGE_1 Automatic Input Slider INS_AUTOM_140_160 Touch control panel EL_SMART_PANEL EREMA Backflush Filter SW_8_215_RTF Number of filter screens: 8 Screen diameter: 215 mm Active screen surface: 2904 cm² Set Die Face Pelletising System SET_HGU_344D_3010_W7_1000_M22 Hot Die Face Pelletizer HG_344D Pellet Dewatering Screen GS_3010_1000 Water Pump Station WPS_700 Pellet Drying Centrifuge GZ_1000_M22 Pellet Transport System PTS_8_1 Final Weighing & Sacking Station PAW_2500

Screw diameter: 100 mm Output: Up to 650 kg/h, depending on the type of material and feeding rate Double degassing Screen changer before degassing: Backflush double piston screen changer SW/RTF with fully automatic self-cleaning system Material feeding system: Conveyor belt with metal detector Reel feeder unit Extruder hopper type: Agglomerator/Cutter Compactor – Extruder combination Pelletising system: Hot die face cutting granulator HG Pellet dewatering screen Pel Pellet centrifugal screen Power: Voltage: 3 x 400V + VAC + Pe Installed power: 357 kW Recycling line EREMA – Accessories: Water bath Water pump Heat exchanger Centrifuge Extraction blower Cyclone Vacuum pump Degassing water circulating system Dust removal unit

Conveyor belt FB 5000/600 All-metal detector Roll feeder RZ 50 P for direct feeding of the line with film material from rolls 1 EREMA process combination Type PC 755 T ecoSAVE Cutter compactor drive power 18,5 kW Cutter bowl diameter 700 mm Extruder drive power 22 kW Screw diameter 50 mm Effective screw length 1169 mm Screw speed approx 250rev/miin Heating capacity at the barrel 9 kW Heating zones at the barrel 2 incl. cutter compactor temperature display Extruder barrel air-cooled Shock sensor - Vibration meter Control system for degree of precompaction Melt - pressure measuring device Melt - temperature measuring device Mechanical - feed slide Hand lever screen changer CL 104 suitable for filtration of clean production waste Screen diameter 1 x 104 mm Sieve area (in production) 85 cm2 Heating capacity 4.0 kW Heating zones single-phase design Number of heating zones 1 Permissible melt pressure up to 400 bar Manually operated HG 82/1010 hot-plate granulator with water cooling system, complete Granulate - dewatering screen GS 1010 Heat exchanger Water temperature control valve Injector - Conveying fan IFG 10 Cyclone system for bagging
