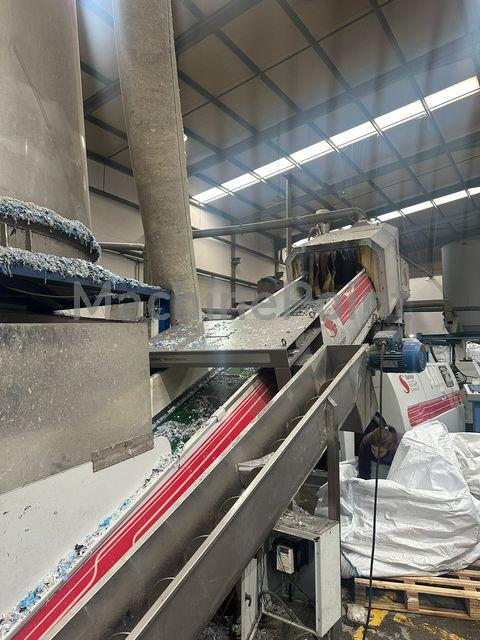

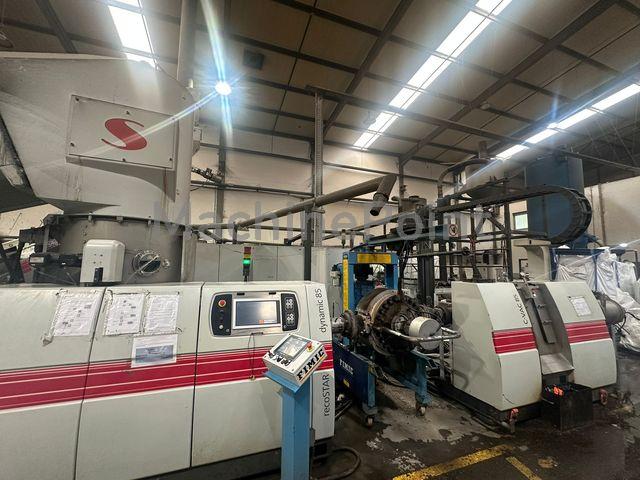

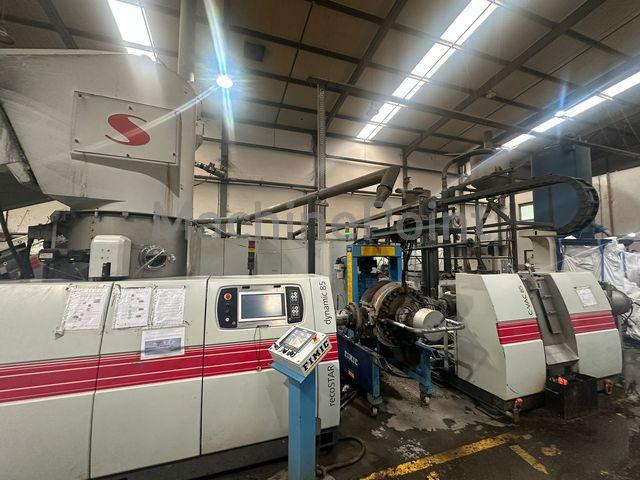

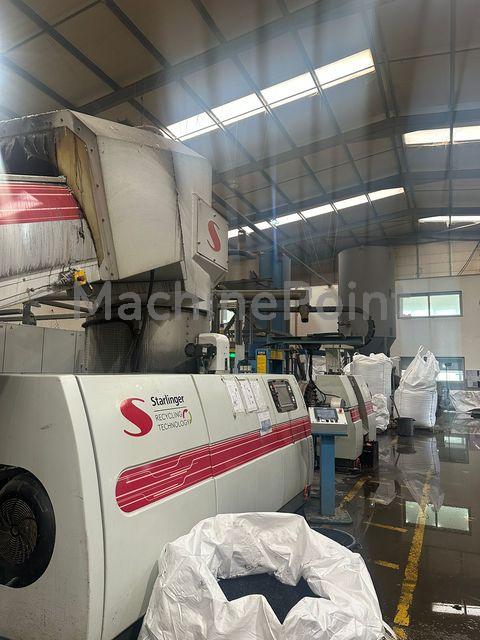

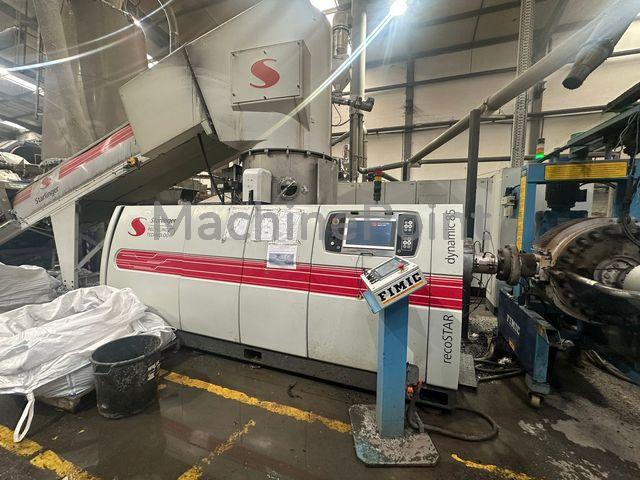

Used Single screw repelletizing line: STARLINGER recoSTAR Dynamic 85 C-VAC of 2023

Tape Stretching Line starEX 1500 ES for the processing of PP Extruder Type E 120.33 TD voluTEC- volumetric granulate feeding and three-component dosing/mixing unit Automatic filter system Flat die 1800 mm with flexible die lip Edge trim recycling for direct return of narrow edge trims of non-stretched film into the Extruder Water quench with integrated holding unit Additional film take-off roller Hot air oven Stretching section with 6 godets for high speed incl. protecting cover and hot oil system Optional Equipment included: Melt pump Gravimetric Batch Blender graviTEC 705 Stretching section with 8 godets for high speed incl. protecting cover and hot oil system Winding machine stacoFIL 200 XE with 280 heads Standard version Tape material PP/HDPE* Tape width 1,8*-6 mm Tape tension control (electronically) Yes Tape tension range (electronically controlled) 40-500 g Denier range 400-3000 Den Tape thickness Min. 25 μm** Standard tape guide Slot-type Special tape guide 2.5, 3, 5 mm Winding speed up to 500 m/min Traverse length 200 mm Vertical arrangement 6 Winders / frame 18 Core dimensions of warp and weft bobbins inside diameter 35 mm outside diameter 40 mm length 218 mm Maximum bobbin diameter 180 mm

Price per unit There are 54 looms year 2011, 54 year 2012 and 54 year 2013 available Specially designed to weave endless tubular or flat cloth out of PP or HDPE tapes Two creels to be fitted with warp bobbins Warp infeed system Warp breack detecting system Weft insertion guaranteed with 576 positions Number of shuttles 6 Working width - double flat 300-850 mm Number of tapes 576/720 pcs Fabric weight 55-140 g/m² Core dimensions of warp and weft bobbins inside diameter 35 mm max. outside diameter 42 mm length 218 mm Max. diameter of warp package 180 mm Max. diameter of weft package 115 mm Length of traverse 200 mm Surface winder: Cloth width 850 mm Max. roll diameter 1200 mm Inside diameter of core 102 mm Outside diameter of core 115 mm

Tape stretching line is developed for processing high quality PP tapes. Flat die 1800 with reversible die lip Die width 1800 mm Die lip aperture 0.1-1 mm Operating speed max. 520 m/min Working width net up to 1650 mm Vacuum feeder and elliptic dosing unit for continuously dosing and mixing the main material and two additives, each with a capacity of 0.2-9% of the main component Extruder Type E 120.33 TD Extruder melting capacity with reference material PP HC115FB, max. 700 kg/h. Working range for common PP rafia grade with MFI ≥3.5-5 g/10 min SMARTTRONIC PROCESSOR CONTROL FOR TAPE STRETCHING LINE Extruder Type E 120.33 TD Flat Die with flexible die lip, adjustable by means of pressure screw, flow channels rheological optimized, in “coat hanger” shape, including heating, wired ready for connection. Edge trim recycling for direct return of narrow edge trims of non-stretched film into the Extruder, consisting of a film cutting unit and a transport system carrying the chips back to the extruder hopper. Water quench with integrated holding unit Extended FILM TAKE-OFF with pneumatically operated nip rollers, driven by frequency controlled three-phase motor Slitting unit, pneumatically operated, with cross adjustment, film oscillating system to extend the life time of blades, blades and spacers for a final tape width of 1,7-5 mm, one complete spare cutting bar, including 430 industrial blades Holding unit with 2 cylinders and 2 nip rolls, frequency controlled three-phase drive with energy recuperation at braking Hot air oven with controlled heating zones Stretching section with 6 godets incl. protecting cover and hot oil system Tape extraction – vacuum system Gravimetric batch blender gravitec 705 the batch blender is used for producing homogenized material mixtures consisting of up to five additives and one main component. Stretching section with 8 godets incl. protecting cover and hot oil system Winding machine twinTAPE 200LX with 280 heads Tape material PP/HDPE Tape width 1,8-6 mm Tape tension control (electronically) Central adjustable Tape tension range (electr. controlled) 30-350 g Denier range 400-3000 Den Tape thickness 20-120 μm** Standard tape guide universal (up to 6mm) Shoes tape guide 1.8-3, 3-5 mm Winding speed 50 – 600 m/min Traverse length 180 – 210 mm Vertical arrangement 5 Winders / frame 15 Core dimensions of warp / weft bobbins inside diameter 35 +0,2/-0 mm outside diameter 40 (47) +/-0,3 mm length 218 +0/-1 mm

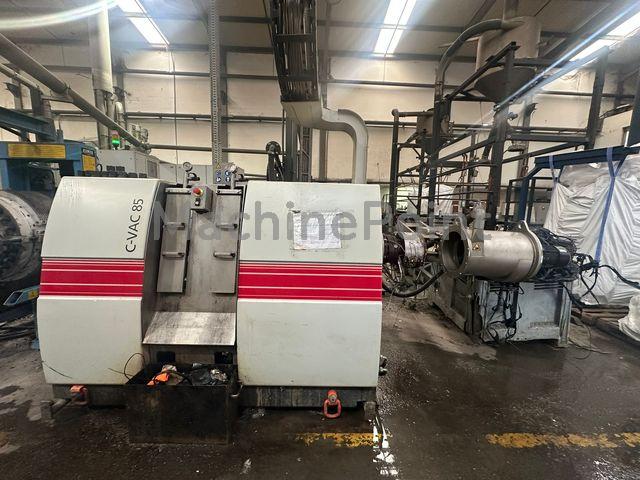

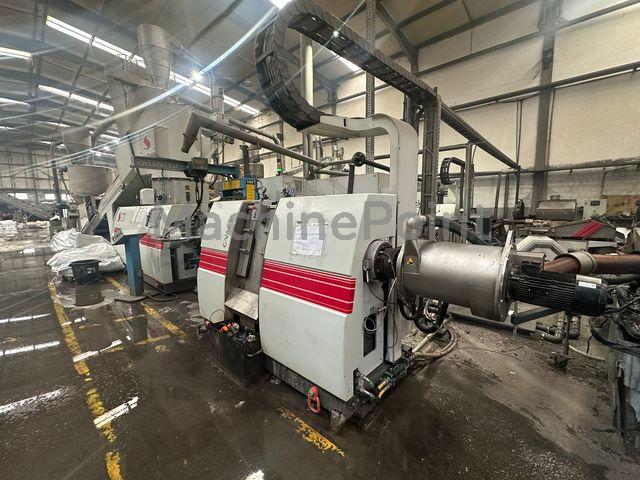

Very effective and fast degassing (C-VAC 2017 version + a large Fimic RAS700 filter). Effective filtration of contaminants (e.g. metal, PVC). Energy savings thanks to the "rECO" technology. Advanced automation and material drying (SMART Feeder). Process stability thanks to the metal detector and heat recovery. Single-shaft cutter compactor Feeding via cyclone in-line with production line Conveyor belt with metal detector Large SMART feeder with control of filling level C-VAC degassing extruder Energy consumption kWh/kg: 0.09-0.16 Price does not include the Fimic RAS700 filter

Working hours: 9,000 Smartfeeder CB800 belt conveyor with metal detector Sesotec Reel feeder Degassing station Electrical cabinet Cyclone Compressor Extruder Fan SPB 180 single piston filter WRP 120CC water ring pelletising unit
