Output (L/H): 6600 l/h

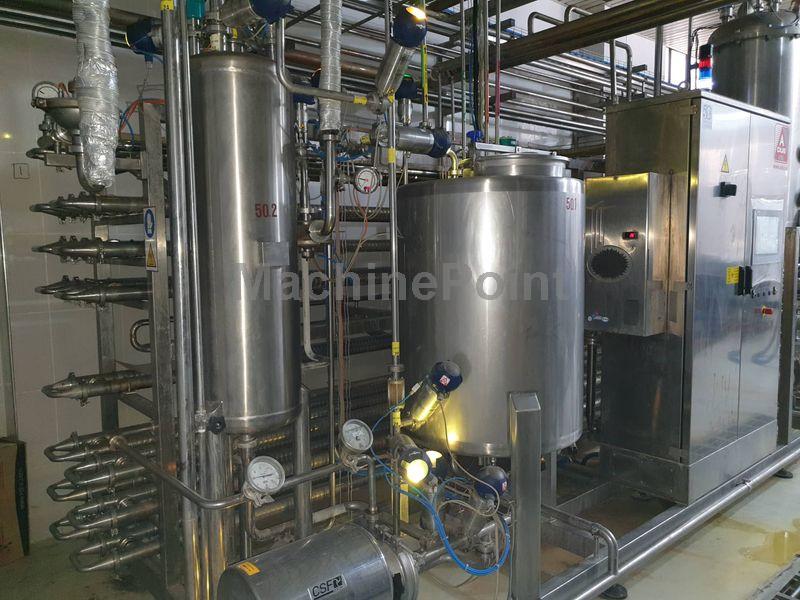

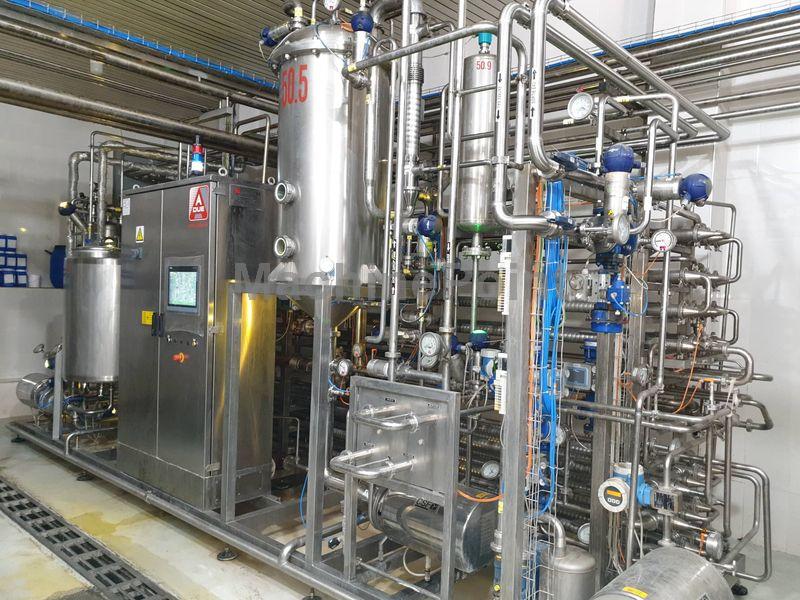

Aseptic plate pasteurizer A Due Easy Therm, year 2016
Flow rate: 1.800 l/h - 6.600 l/h
Suitable to heat, sterilize and cool products for aseptic filling.
- Fruit juice and nectar (max viscosity: 50 cPs at + 25 °C)
- Milk and chocolate based drink
- Max 0.5 ppm Cl, Pulp 20% v/v, Fibers Ø 1mm l= 5 mm (15% v/v max)
Preheater / Pasteurizer / Cooler specifications:
- 25°÷65°C (energy recovery)
- 65°÷131°C (energy recovery)
- 131°÷141°C (Pasteurization)
- Chambering (30 sec.)
- 141°C / 75°C (energy recovery)
- 75°C / 35°C (energy recovery)
- 35°C ¸ 20°C - Filling (chilled water)
- Energy recovery 88.5%.
- Product balancing tank (1.000 l)
- Centrifugal product feed pump controlled by a frequency variator;
- Magnetic flowmeter to establish the flow rate in advance;
- Four-stage plate heat exchanger in AISI 316 stainless steel equipped with FREE FLOW plates to be able to process products with fibers placed on a tubular frame,
- Booster pump controlled by a frequency converter,
- Automatic differential pressure control and regulation system;
- Pasteurization section among a superheated water unit;
- Hot water preparation unit: water/steam exchanger, centrifugal pump, piping, accessories,
- Product chamber section;
- Cooling section among cold water;
- Automatic control unit of temperatures, flows, chamberings, recipes, pressures;
- Supporting structure;
- Internal pipes in stainless steel AISI 316L ;
- Water buffer tank made of AISI 316 stainless steel with double function (water buffer tank for the product push when in production; and expansion tank during the closed circuit sterilization phases during the Nep procedures).
- Sanitation unit integrated in machines, with pneumatic diaphragm pumps for the dosing of chemicals, conductivimeter and group of valves for the management of the washing cycles.
- Backwasher of the plate heat exchanger (for the correct and safe removal of all the fibers in the channels).
- Electrical control panel with PLC SIEMENS S7, and touch screen SIEMENS TPI 1200 color display 12"; service accessories, 24V or 110V auxiliary circuits, conditioner & UPS.
Guarantee: Without guarantee
Current condition: In Production
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 12 Kw
Final Products: Fresh juices
