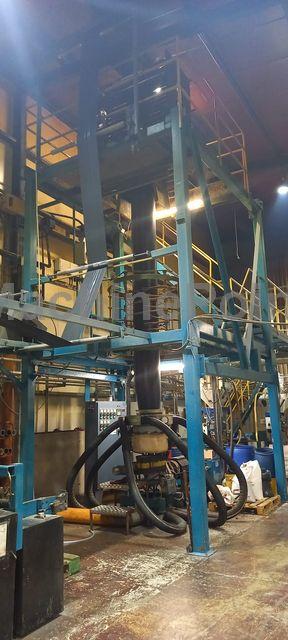

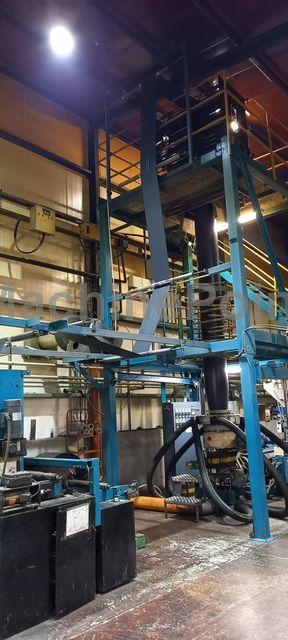

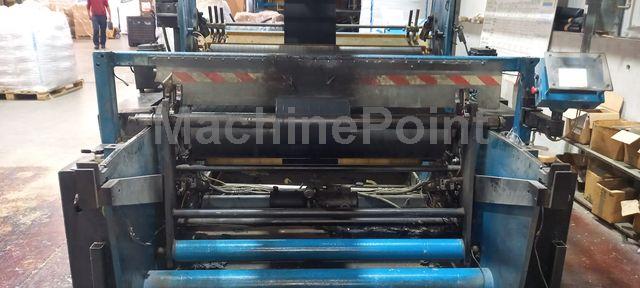

Used ALPHA MARATHON of 1996 for sale

Mono extrusion lines ALPHA MARATHON, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used ALPHA MARATHON

Ref. : 300044642

Year: 1996


Status: For sale

Delivery time: Immediate

Technical Specifications:

Materials: LLDPE / LDPE

Film Width (Max): 1000 mm

Output Capacity: 120 kg/h

Screw Diameters: 90

Rewind Unit Type:Single

Other Specifications:

Film width : 400mm - 1000mm
Thickness : 25micr - 130micr
Output extruder : 75 - 120kg/h

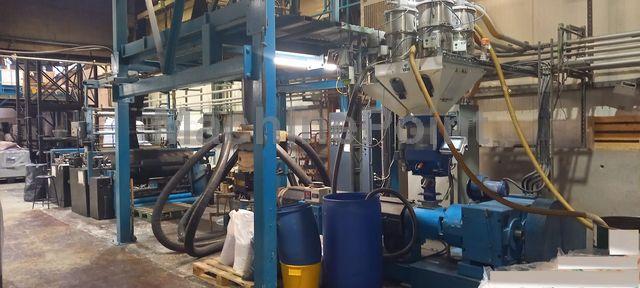

Gravimetric dosing system / 5 components
5 TSM vacuum loaders, TSM Blender
Screw 90mm ; L/D 27

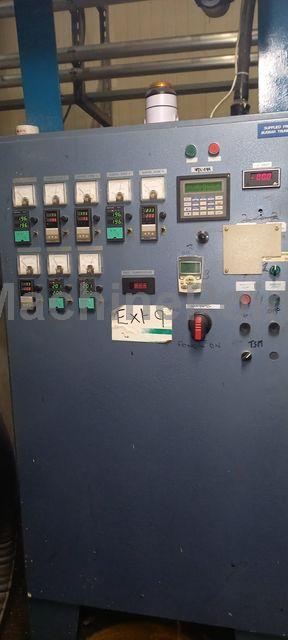

10 heating zones

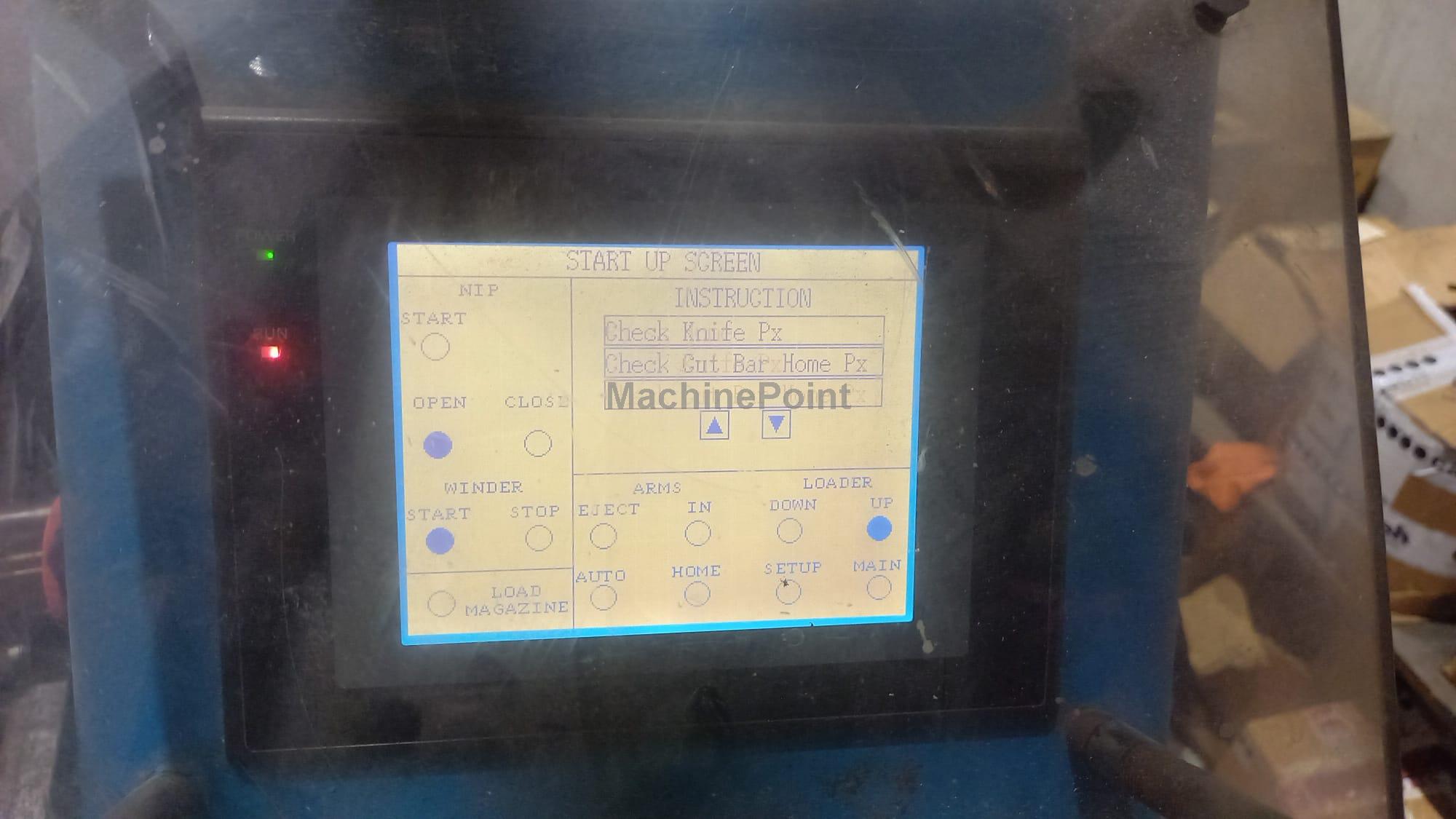

Driving system : PLC + inverter
Power : 125kW
Melt pressure indicator

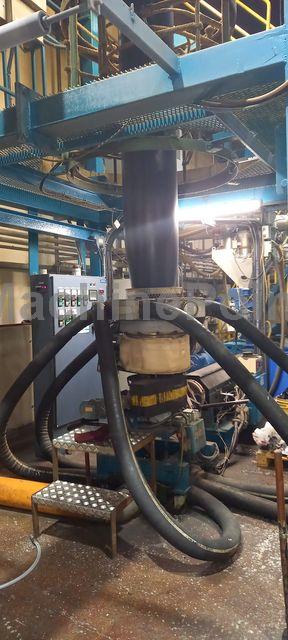

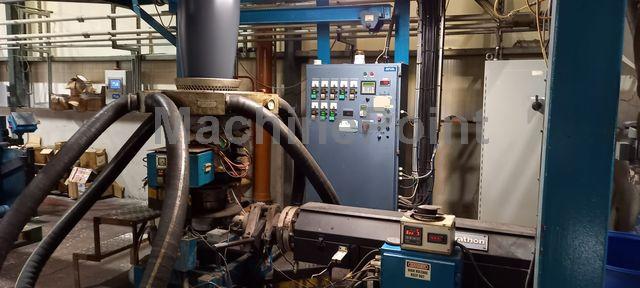

Rotating die head
Die head diameter : 200mm
Air ring type : dual lip
Number of inlets : 6
Cooling caudal up to 5000m3/h
Calibrating basket
Motorized adjusting of calibrating basket : diameter 450-1000mm / height 900mm

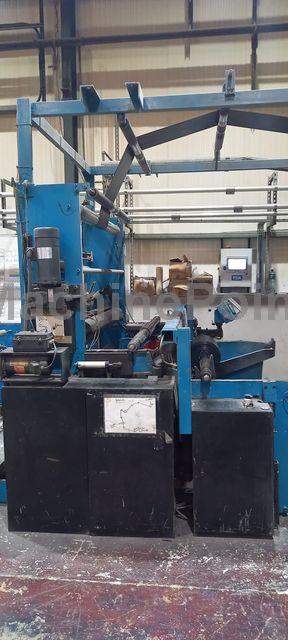

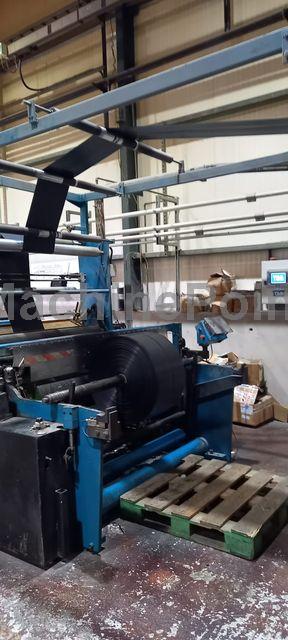

Rewinder roll width : max 1300mm
Final roll diameter : 500mm
Max. weight roll : 250kg
Adjustable rewinding speed

Thickness control : yes, part of gravimetric system
Filter changer : manual / two chamber / 95mm

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate
