Specyfikacja techniczna:
Opis: preheating and pressing of solid surfaces & thermoplastics, 3D laminating of PVC (Polylaminate) and bending.
Inne specyfikacje:
Single 370x150cm Industrial Ecotherm Global Heating Oven with double gold anodized plate for preheating solid, acrylic and plastic surfaces. Useful size: 3700x150mm (3 zones of 123cm x 150cm) and Single Global Membrane Press, for thermoforming, laminating and bending all types of solid surfaces and wood. Useful size: 3700x1500mm. Special size, never used before.

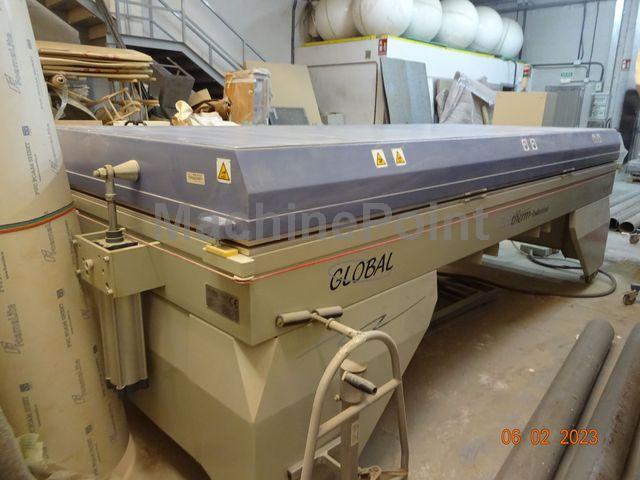

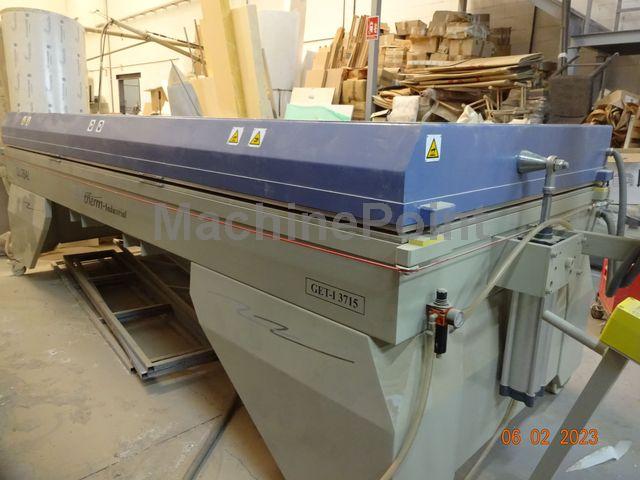

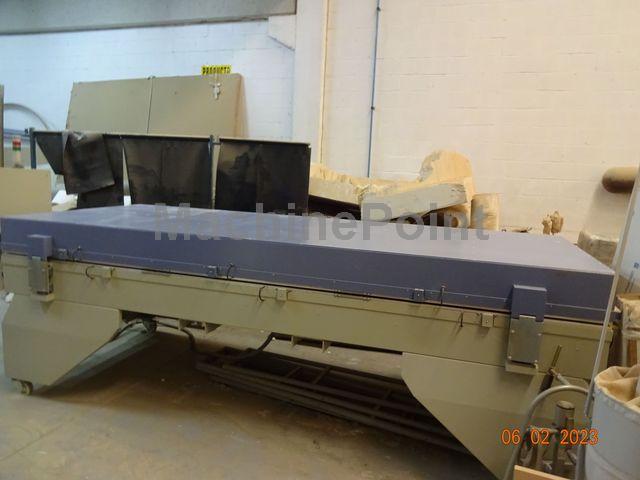

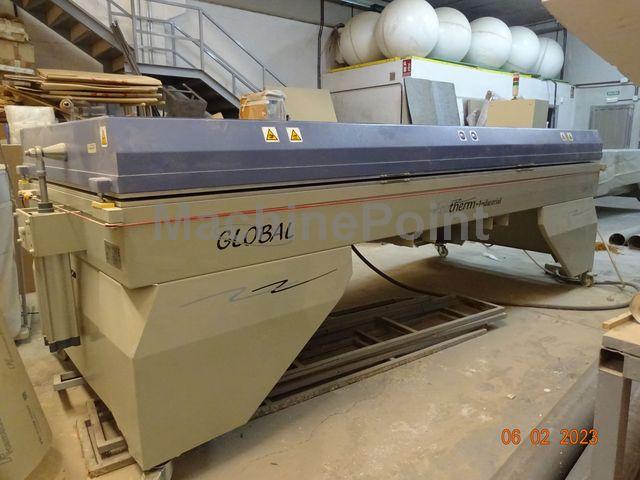

GET-I-371 Global Heating Oven Ecotherm Industrial single 370x150cm with double gold anodized plate for preheating solid, acrylic and plastic surfaces.
Each aluminum plate is made of 14mm, with a special electrical resistance.

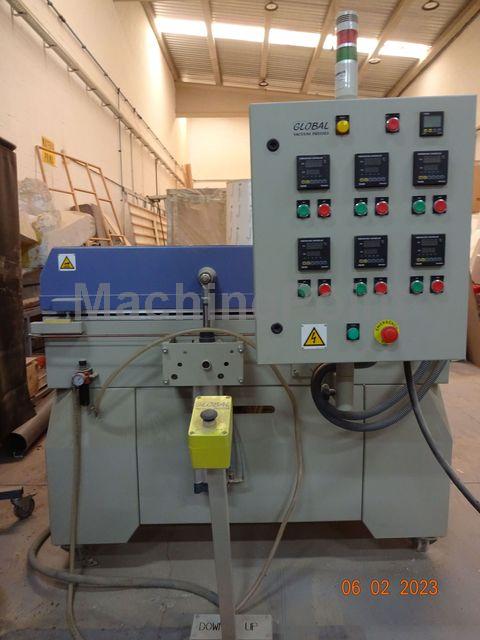

Side control box with digital thermometers from 0 to 200ºC.
The machine is constructed of very solid steel frames. Divided into 3 zones with independent temperature regulators. Energy saving up to 66%.
Each of the thermometers has an electronic system to stabilize the desired temperature. It also indicates the temperature that has the lever until it reaches the set temperature.
Upper frame with automatic opening by pneumatic cylinders with three safety systems.
Automatic material thickness adjustment system by special hinges on rail to apply contact heat on both sides.
Closing-opening system with pneumatic pedals for "hands free" operation.
25mm of thermal insulation between hot plate and structure for safe operability.
Emergency stop module.
Stationary model with steel legs with wheels.
Technical features:
Usable size: 3700x1500mm (3 zones of 123cm x 150cm).
Capacity up to 30mm material thickness.
Working height: 1000mm
Total power: 19.5-40.5-61.5A
Consumption: 13.05-26.10-39.15kW
Voltage: 380V, 3 phase
Machine dimensions: 463x165x152cm (Outer dimensions: 453x175x150cm).
Machine weight: 1.400Kg

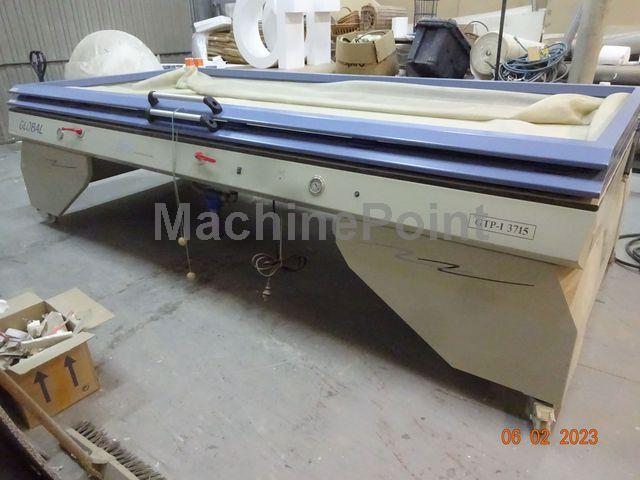

GTP-I-3175 Single Global Membrane Press, for thermoforming, laminating and bending all types of solid surfaces and wood.
The machine is built with very solid steel frame.
Pressing table 18mm thick, very solid and with channels and multiple holes for a fast and perfect air extraction.
Built-in vacuum pump GVP400 (40m3/h), protected with a 60micron filter, connected to a 2 position start-up switch with automatic stop when the desired level is reached and combined with a vacuum switch to select the desired vacuum level and running continuously.

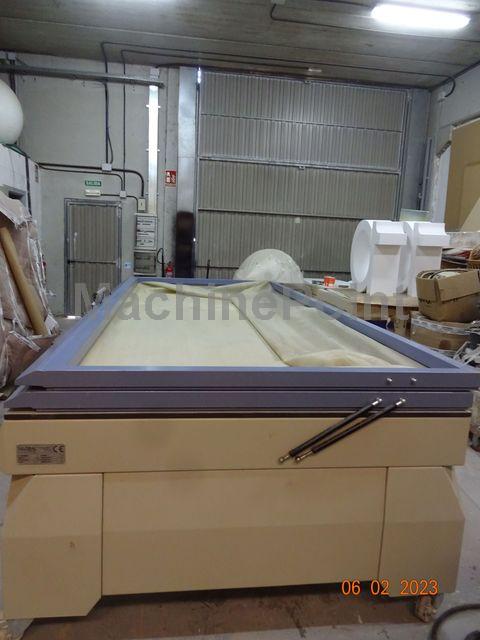

Upper frame with the membrane specified in the technical characteristics, with rubber sealing and with two gas springs, hinges at the rear. Suction cups at the front. Additional 4m3/h vacuum pump for suction cups vacuum.
Model with iron legs and wheels.
Technical features:
Useful size: 3700x1500mm.
Silicone membrane with 2mm thickness resistant to temperatures up to 230ºC.
Maximum height: up to 700mm high, depending on the volume of the object.
Vacuum pump: GVP400 (40m3/h)
Final pressure: 90% Vacuum max. equal to 9.000Kg of pressure per m2.
Working height: 900mm
Total power: 7.6A
Consumption: 1.25kW/hr.
Voltage: 230V, 1 phase
Dimensions of the machine: 385x170x110cm
Machine weight: 700Kg.
Uses: preheating and pressing of solid surfaces & thermoplastics, 3D laminating of PVC (Polylaminate) and bending.
Pozostałe dane:
Gwarancja: Bez gwarancji
Kondycja: Maszyna zdemontowana ale może zostać złożona i pokazana w suchym cyklu
Dostępność: Natychmiastowa
Napięcie: 220 V
, Napięcie: 380 V Triphase
Częstotliwość: 50 Hz
