Technical Specifications:
Clamping Force: 125 ton
Shot Weight (Max): 150 g
Distance Between Tie-Bars (H): 460 mm
Distance Between Tie-Bars (V): 460 mm
Platen Size (H): 665 mm
Platen Size (V): 665 mm
Screw Diameter: 35 mm
Control Type:Electronic
Tie-Bar Diameter: 65 mm
Mould Height (Max): 500 mm
Mould Height (Min): 200 mm
Daylight Between Platens (Max): 900 mm
Opening Stroke (Max): 500 mm
Ejector Force: 3.56900674542275 ton
Ejector Stroke: 165 mm
Dry Cycle (S): 1.6 s
Injection Volume: 200 cm³
Injection Pressure: 1667.1305 bar
Injection Rate: 251 cm³/s
Plasticising Capacity: 34 g/s
Heating Capacity: 13.5 kW
Other Specifications:
Electric machine
Included: vacuum pump, cyclone filter, frame+ hopper, material container, material dryer, storage hopper, storage hopper grid, industrial chiller
No robot
The main computer was replaced under warranty.
Machine was in production and worked 2400 hours

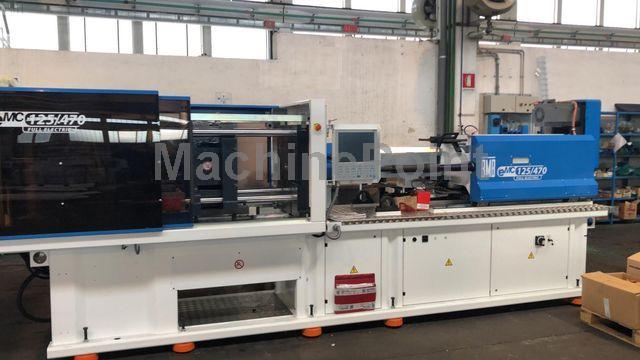

The photos and video were taken before dismantling the machine
The machine is already packed and ready to be delivered to the buyer.
Other Details:
Guarantee: Without guarantee
Current condition: Dismantled. Can't be seen in running condition
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 64 Kw
Full Electric
