Technical Specifications:
Material : PET, PP, PS, PVC
Forming Area (Vxh): 540x390
Depth Of Draw: 120 mm
Material Thickness (Min): 0.2 mm
Material Thickness (Max): 1.5 mm
Number Of Stations: 3
Products Type:Container

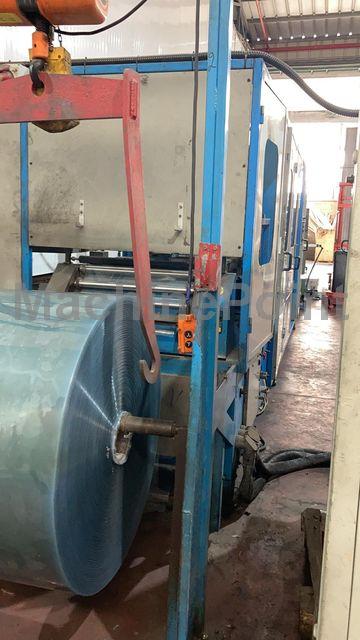

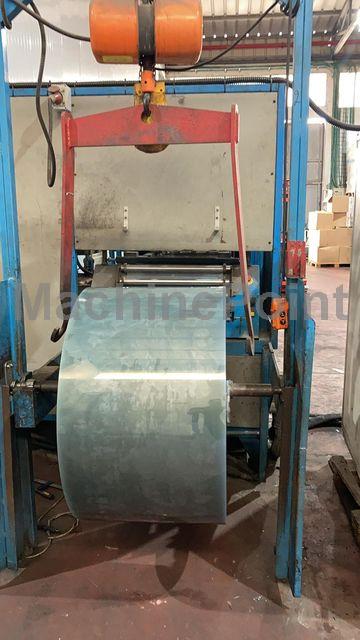

Feeding Systems:Roll fed
Other Specifications:
3 stations : forming - cutting - stacking
Materials : PET, PP, PS, PVC
Max mold size : 550x450
Max sheet width : 590mm
Depth of draw : 120mm
Sheet thickness min-max : 200-1500 microns
Output : 20 cycles/min
Mold closing force : 2 bar
Feed length : 450mm
Drive : servo

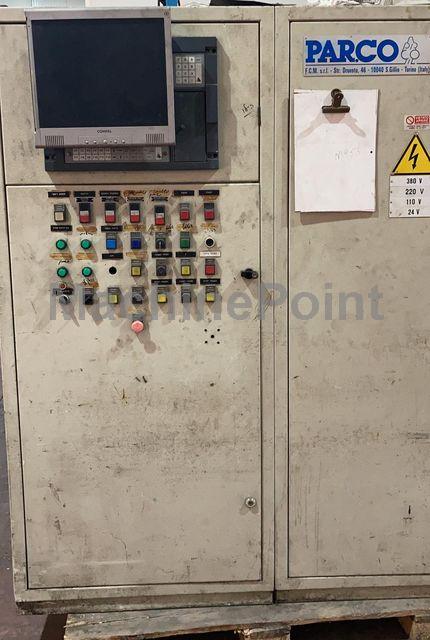

PLC : GE
The machine includes an extra collection controller
Forming with vacuum and pressure forming (between 2 & 4 bars)
Plug Assist
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 45 Kw
